Technishield
- Fire Resistance
- E30, E60
- Profile
- 50mm x 70mm
- Door set
- Single
- Minimum
- 1800mm
- Maximum
- 3000mm
- Minimum
- 955mm
- Maximum
- 1230mm
Height
Width
Technishield®
Fire-resistant glass partitions and doors delivering 30-120 minutes of certified protection, without compromising design.
The Technishield range provides fire-resistant glass partitions and doors designed to meet the visual and practical demands of modern office interiors. Slim steel-framed systems combine clearly defined fire performance with a considered architectural appearance, supporting glazed screens and doors without compromising the overall design intent of the space.

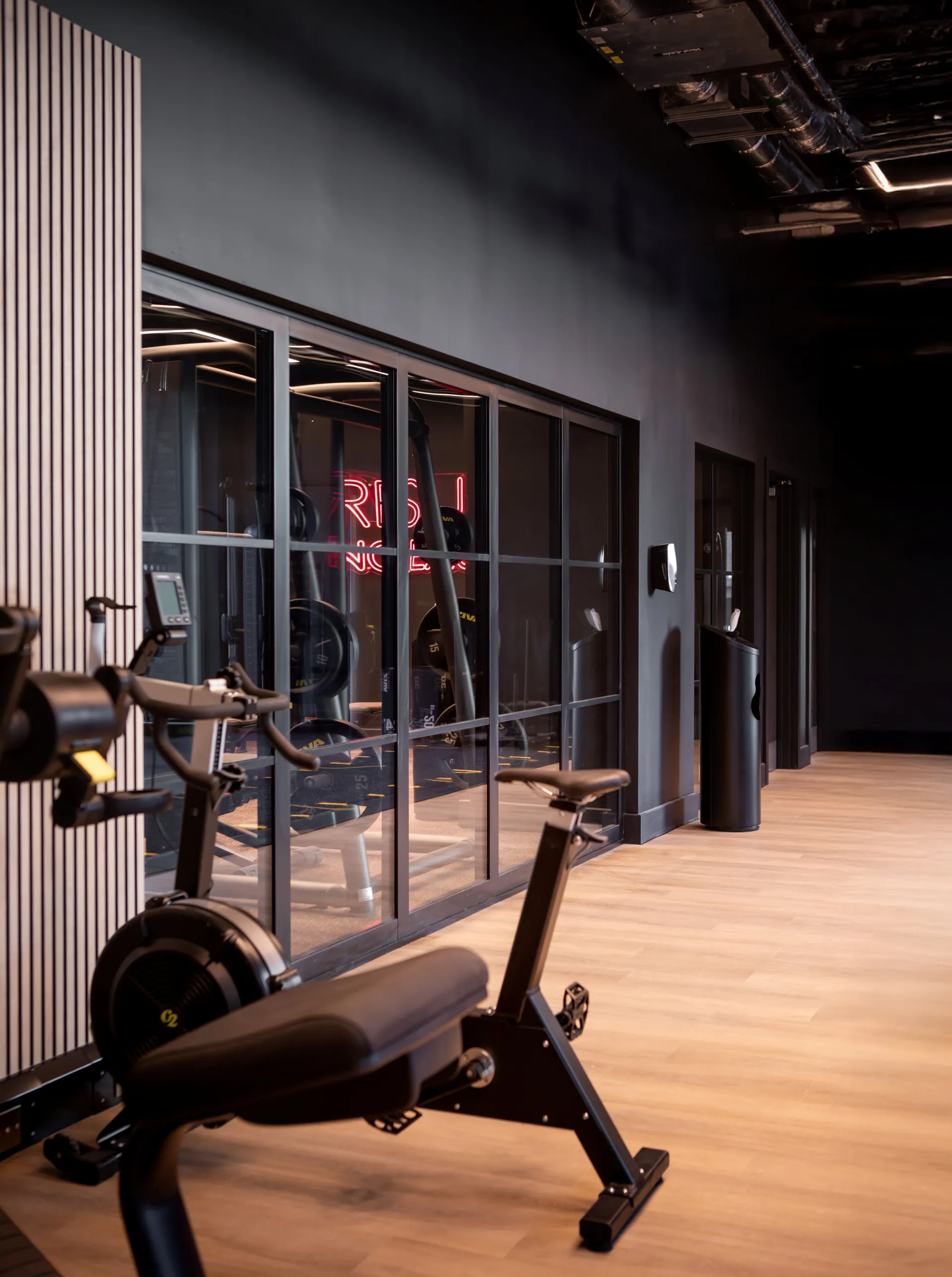

Certified Fire Protection
From 30 minutes’ integrity to 120 minutes’ integrity and insulation, the Technishield range provides fire-resistant glazed partition and door systems supported by test evidence to relevant British and European standards.
Fabricated In-House
Our fire resistant products are fabricated in-house, allowing us to control the quality and accuracy of every system before it leaves our factory.

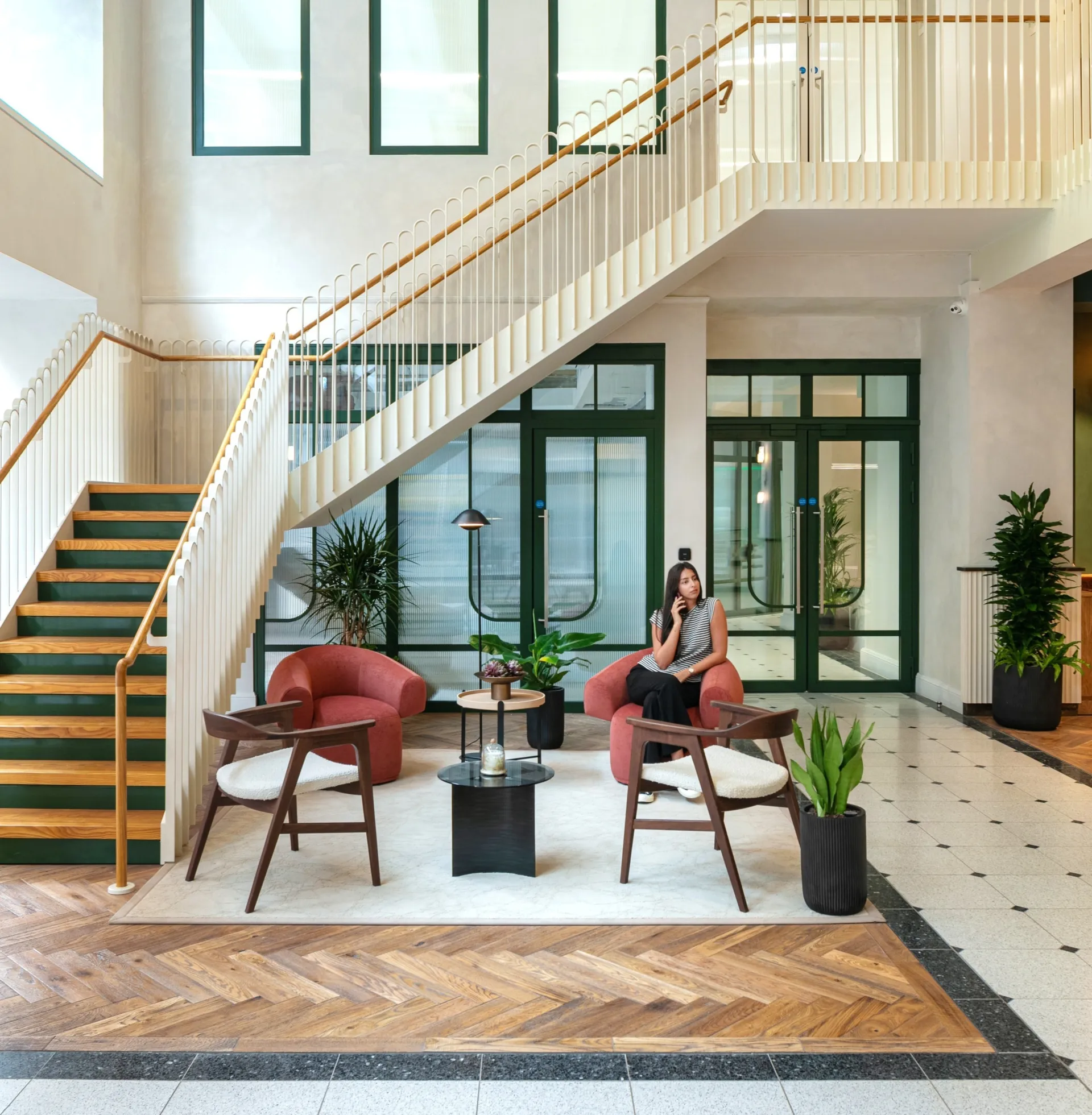

Flexible Configurations
Available as screens, single and double doors, side panels, and over panels, with butt-jointed, mullion, or fully framed glazing options to suit any elevation.
Optima Technishield Range
E30 to E120
Technishield®
A fire-resistant glazed partitioning system providing integrity protection from 30-120 minutes, with compatible door integration up to 60 minutes of integrity.
- Glazing
- Single-glazed
- Frame
- Steel
- Max height
- 4000 mm
EI30 to EI120
Technishield® Plus
A fire resistant glazed partitioning system providing 30 to 120 minutes of integrity and insulation, with door options across selected configurations.
- Glazing
- Single-glazed
- Frame
- Steel
- Max height
- 2320mm to 4000mm depending on fire resistance.
EI30 to EI90
Technishield® Quartz
A butt-jointed screen only glazing system providing up to 90 minutes of integrity and insulation, with unlimited screen widths and high glazed panels.
- Glazing
- Single-glazed
- Frame
- Steel
- Max height
- 2800mm to 3624mm depending on fire resistance.
Tested. Certified. Trusted.
Every Technishield system is rigorously tested to the highest standards. Acoustic performance is measured on full-height, multi-module screens with glazing joints and perimeter trackwork, not simplified window samples, ensuring the ratings you specify are the ratings you get on site.
Breadth of Test Evidence
Extensive fire testing supports a wide range of Technishield system configurations, giving greater flexibility across different screen, door, glazing and framing requirements.
Award-Winning OPTech Support
Our award-winning OPTech team provides evidence-backed fire guidance, helping project teams interpret test evidence and select appropriate system configurations.
Independently Verified Performance
Technishield systems are supported by independent fire test evidence, providing documented performance data for use during specification, design review and compliance checks.
Evidence for Each Configuration
Fire performance is linked to clearly defined tested or assessed configurations, helping ensure claims are applied only where the supporting evidence is relevant.

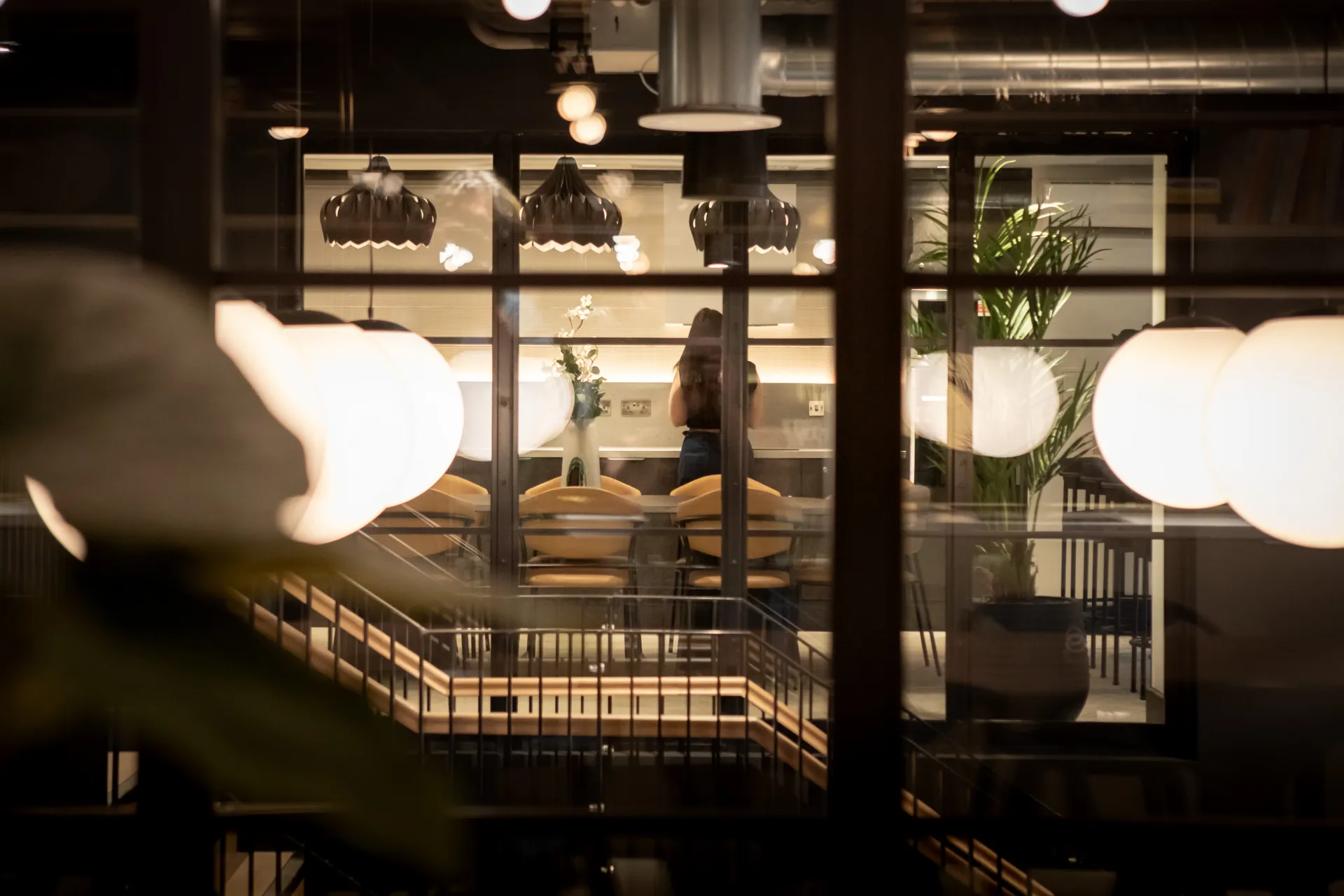

Applications
Technishield systems are specified across a wide range of commercial environments where fire compartmentation, escape route protection, and design quality are all essential.
Technishield Fire-resistant door configurations
The Technishield Integrity & Integrity & Insulation systems each include compatible fire-resistant door sets. Select a configuration to compare specifications and size limits across all three systems.
Technishield Plus
- Fire Resistance
- EI30, EI60, EI90
- Profile
- 65mm × 70mm for EI30 / EI60 70mm × 70mm for EI90
- Door set
- Single
- Minimum
- 3000mm for EI30 / EI60; 2320mm for EI90
- Maximum
- 3000mm
- Minimum
- 955mm
- Maximum
- 1460mm
Height
Width
Find the right Technishield system for your project by comparing fire resistance ratings, acoustic performance, frame dimensions, and configuration options.
| System | Fire resistance | Rating type | Frame | Max acoustic | Max height |
|---|---|---|---|---|---|
| Technishield® | E30 to E120 | Integrity only | steel | — | 4000 mm |
| Technishield® Plus | EI30 to EI120 | Integrity + Insulation | steel | — | 2320mm to 4000mm depending on fire resistance. |
| Technishield® Quartz | EI30 to EI90 | Integrity + Insulation | steel | — | 2800mm to 3624mm depending on fire resistance. |
Technishield FAQ's
The range covers E30 (30 minutes integrity) through to EI120 (120 minutes integrity and insulation).
E-rated systems (integrity only) prevent the passage of flames and hot gases. EI-rated systems provide both integrity and insulation, also limiting heat transfer through the partition.
Yes, Single doors, double doors, doors with over panels, and doors with side panels are available depending on the system.
Yes, all systems are tested in 3rd party UKAS-accredited laboratories.
