Technishield®
A fire-resistant glazed partitioning system providing integrity protection from 30-120 minutes, with compatible door integration up to 60 minutes of integrity.
Designed for internal glazed applications where fire integrity is required, the system forms transparent fire-resistant screens while maintaining a coordinated appearance across the partition and door assembly. Available in configurations from 30 to 120 minutes, it can be specified to suit different fire compartmentation requirements while retaining visibility and natural light.
Quick links

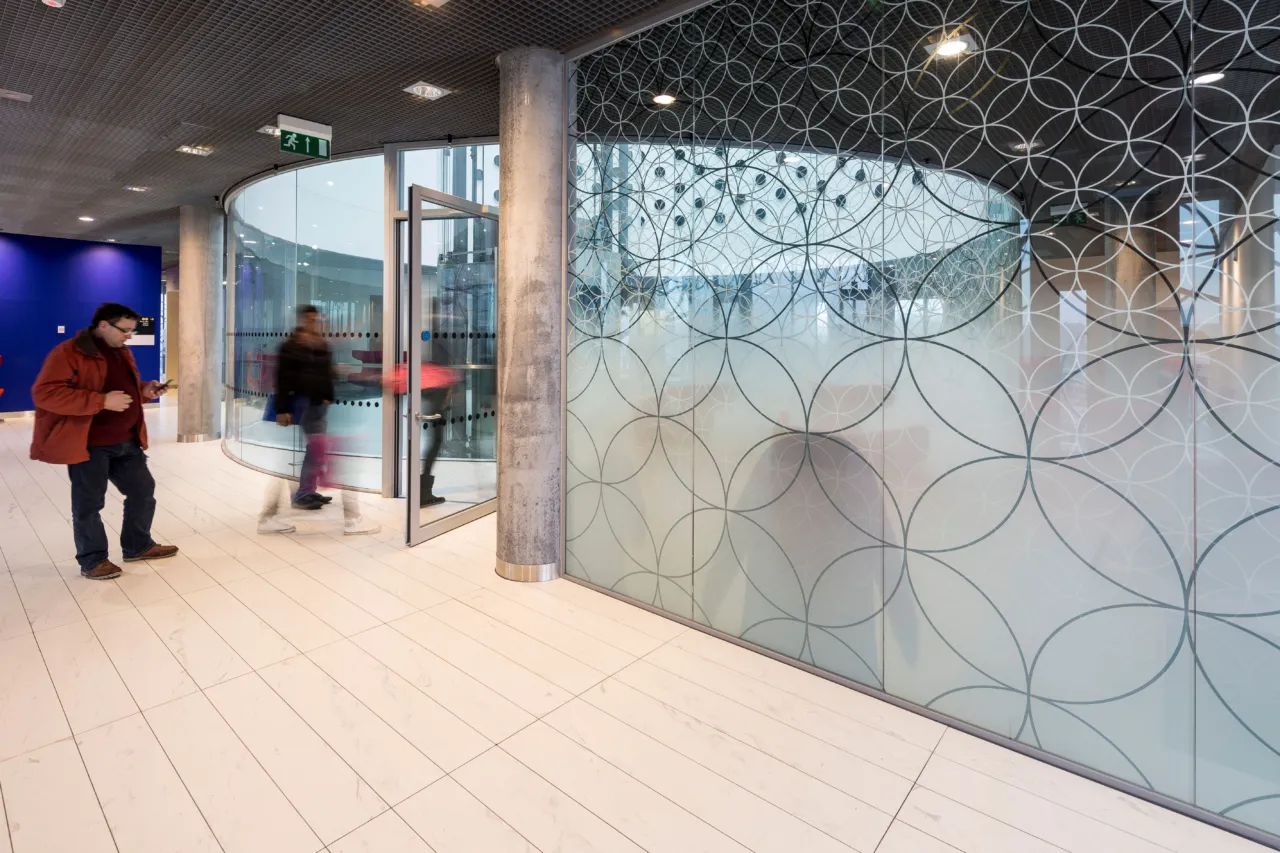

30 to 120 Minutes of Fire Integrity Only
Available in tested configurations providing fire integrity from 30 to 120 minutes, depending on the system build-up and specification.

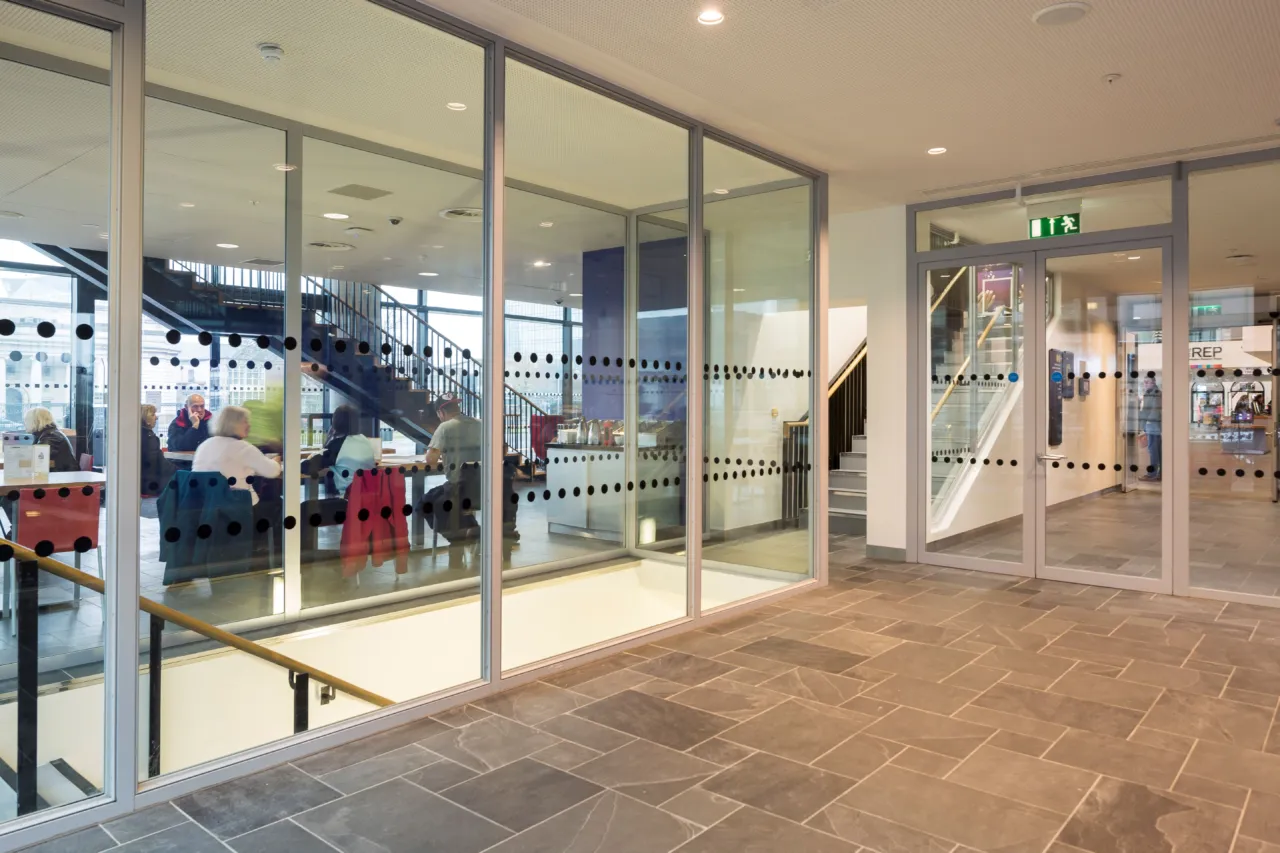

Integrated Door Options
Compatible fire-rated door configurations of up to 60 minutes of integrity only allow the screen and door to be specified as part of a coordinated fire resistant assembly.
Tested Acoustic Performance
Available with a range of tested acoustic configurations, allowing the system to be specified to suit the sound reduction requirements of different projects.
Technishield® FAQ's
The system is available in integrity-only configurations providing 30 or 60 minutes fire resistance, with options for glazed side panels and single or double door sets.
Yes. It can be configured with single or double doors, with options including overpanels and side panels. Non-rebated double-door configurations are also available.
Single doors can be specified up to 3000mm high and 1230mm wide. Double doors can be specified up to 2900mm high and 2800mm wide, while door sets with overpanels can reach up to 4000mm overall height.
Side panels are available from 300mm to 1100mm wide and connect to the relevant door frame using spigot joints.
The system uses wet glazing with ceramic tape and black fire-rated silicone, selected to suit the glass specification.
The system is detailed with fire-rated ironmongery including welded hinges, lever handles, a two-point fire-rated latch and deadlock, door closers, dropseals and fire-protection door seals. The final ironmongery must comply with the relevant fire certification.
Other Optima Systems
Optima 117 Plus
A slim, single-glazed partitioning system with a minimal track and acoustic performance up to Rw40dB.
Revolution® 54 Plus
A 54mm, single or double-glazed glass partitioning system, with acoustic performance up to Rw46dB.
Revolution® 100
A 100mm glass partitioning system engineered for demanding acoustic privacy applications, with performance up to Rw53dB.
Enquire about
Technishield®
Get in touch with our team to discuss your project requirements and how Technishield® can be configured for your space.
